How To Set Up The Stealth All Out Stand V2

The Stealth All Out Stand V2 is built to make your adjustable dumbbells easier, safer and smoother to use. Instead of lifting your dumbbells from the floor between sets, the stand gives you a strong, stable racking position at a more practical training height.

This guide walks you through how to assemble your Stealth All Out Stand V2, what comes in the box, how to position it correctly, and how to check it before loading your dumbbells.

What Is The Stealth All Out Stand V2?

The Stealth All Out Stand V2 is designed for lifters who want maximum stability, easier access to their dumbbells, and a more efficient home gym setup.

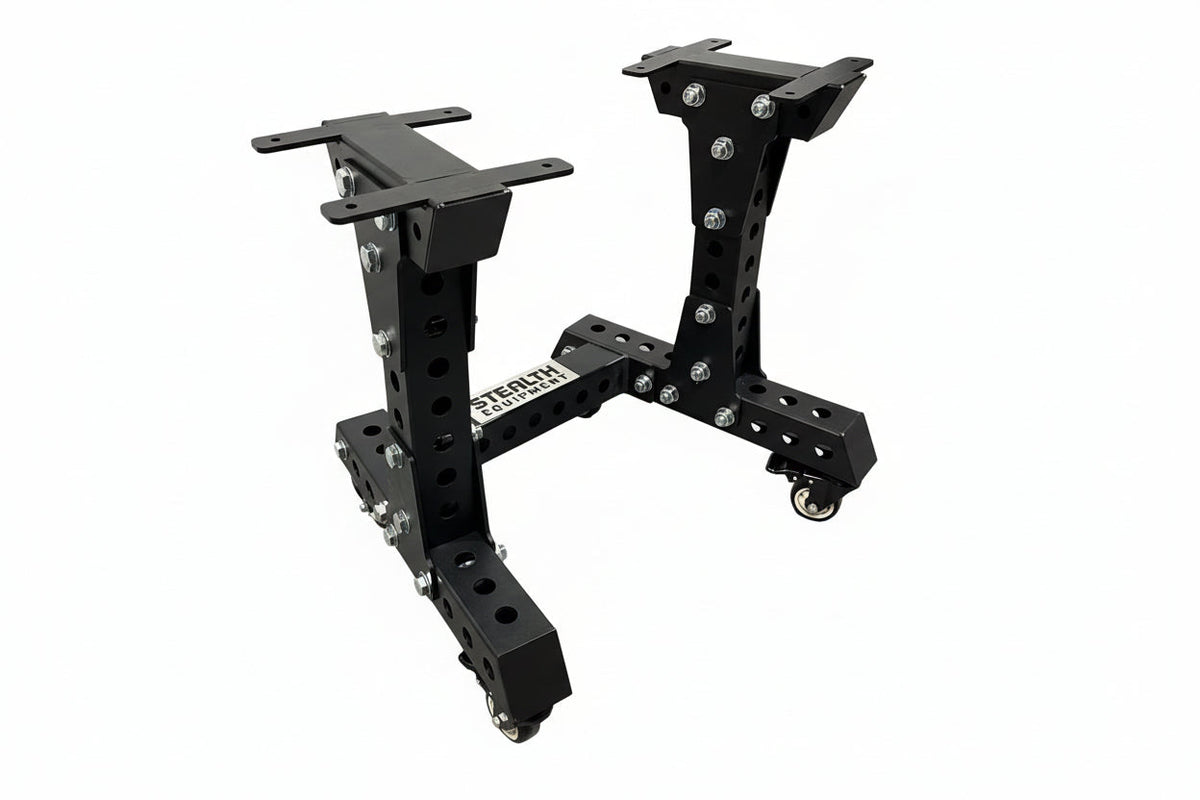

It uses a reinforced 75 × 75mm steel frame, oversized hardware and four heavy-duty lockable wheels, giving you a strong base that can be moved when needed and locked into place when training.

Unlike a basic dumbbell stand, the All Out Stand V2 is designed to bolt compatible dumbbell bases directly onto the stand. This helps keep the bases secure, reduces movement during use, and makes the setup feel more fixed and stable.

Before You Start

You can also watch our video instruction guide if you want a visual guide.

Before building the stand, clear a flat area with enough space to lay out the frame, hardware and tools. The stand is heavy-duty, so it is worth taking your time rather than rushing the build.

You should also check that all parts are present before tightening anything fully.

What Comes In The Box?

Your Stealth All Out Stand V2 should include:

1. Stealth All Out Stand frame components
2. Tool bag
3. Assembly hardware
4. 24mm spanners
5. Allen key

The stand is supplied as the stand only. Dumbbells shown in product images or videos are for demonstration unless purchased as part of a bundle.

Tools You May Need

The stand includes basic tools, including 24mm spanners and an Allen key. These are enough to complete the setup, but for the smoothest build, you may prefer to use your own ratchet socket or higher-quality spanner to tighten the main bolts more easily.

Do not fully tighten every bolt straight away. It is better to loosely assemble the frame first, line everything up, then tighten once the stand is square and level.

Step 1: Lay Out All Parts

Start by placing every part on the floor so you can see what you are working with.

Group the hardware together and separate the main frame sections, base sections, uprights, wheels and fixing points. This makes the build easier and helps you avoid putting bolts in the wrong place.

Before assembly, check for:

1. All main frame sections
2. All wheels
3. All bolts and washers
4. Dumbbell base mounting points
5. Tool bag and supplied tools

Step 2: Build The Main Frame

Begin by assembling the main steel frame. The Stealth All Out Stand V2 uses a reinforced 75 × 75mm steel structure, so expect the parts to feel solid and heavy.

Line the frame sections up and insert the bolts loosely at first. Do not fully tighten them yet. Keeping the bolts slightly loose gives you enough movement to align the frame properly before the final tighten.

Once the basic frame is together, check that the stand is sitting evenly and that the uprights are correctly positioned.

Step 3: Attach The Wheels

The All Out Stand V2 includes four super heavy-duty lockable wheels. These allow you to move the stand around your home gym when needed, then lock it in place before training.

Attach each wheel to the base of the stand using the supplied hardware. Make sure each wheel is secured properly and facing correctly before tightening.

Once fitted, check that the wheels roll smoothly and that the locks work properly.

Important: always lock the wheels before loading, unloading or training with your dumbbells.

Step 4: Set The Base Position

The Stealth All Out Stand V2 has a 3-position adjustable base. This allows you to customise the racking position for your setup and training preference.

Choose the base position that feels most natural for how you lift the dumbbells in and out of the stand. The goal is to create a comfortable racking angle that makes it easy to lift, replace and adjust your dumbbells without fighting the base.

If you are unsure, start with the middle position, test the feel, then adjust if needed.

Step 5: Bolt The Dumbbell Bases To The Stand

One of the main benefits of the Stealth All Out Stand V2 is the bolt-on design. Compatible dumbbell bases can be bolted directly to the stand, helping prevent slipping or movement during use.

Position each dumbbell base on the stand and line it up with the mounting holes. Insert the bolts and tighten them evenly.

Take your time here. The bases should sit flat, secure and level. If something feels misaligned, loosen the bolts, reposition the base, then retighten.

Step 6: Tighten All Hardware

Once the frame, wheels and bases are correctly positioned, go back around the stand and tighten all bolts securely.

Work around the stand gradually rather than fully tightening one side first. This helps keep the frame aligned and prevents twisting.

Check:

1. Main frame bolts
2. Wheel bolts
3. Dumbbell base bolts
4. Any adjustable base fixings

The finished stand should feel solid, level and secure.

Step 7: Position The Stand In Your Training Space

Move the stand into your chosen training area, then lock all four wheels.

The best position is somewhere with enough space to lift the dumbbells out safely, step back, complete your set, then return them without obstruction.

Avoid placing the stand on an uneven surface. For best results, use it on a flat, stable floor. If you train on mats, make sure the stand is still sitting evenly and the wheels are locked.

Step 8: Load Your Dumbbells

Once the stand is built, locked and checked, place your dumbbells into the bases.

Do this carefully, especially if using heavier 32.5kg or 41.5kg adjustable dumbbells. Make sure each dumbbell sits properly in its cradle before adjusting the weight.

Before your first proper session, test the dumbbells at a lighter setting. Lift them out, place them back in, and check that everything feels smooth and stable.

Compatibility Notes

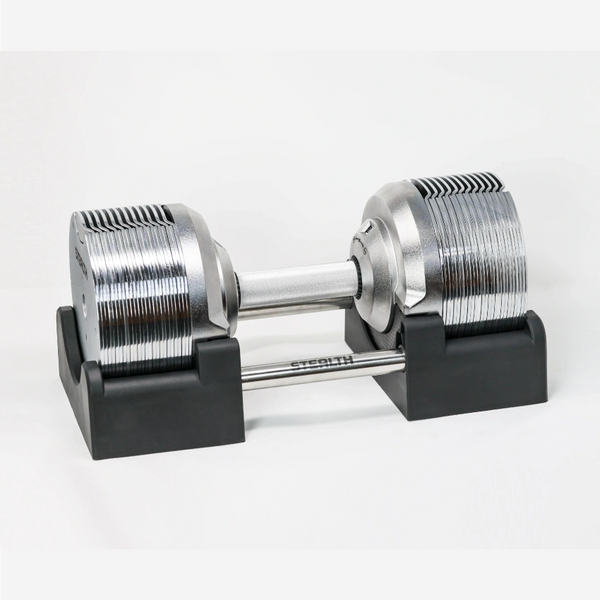

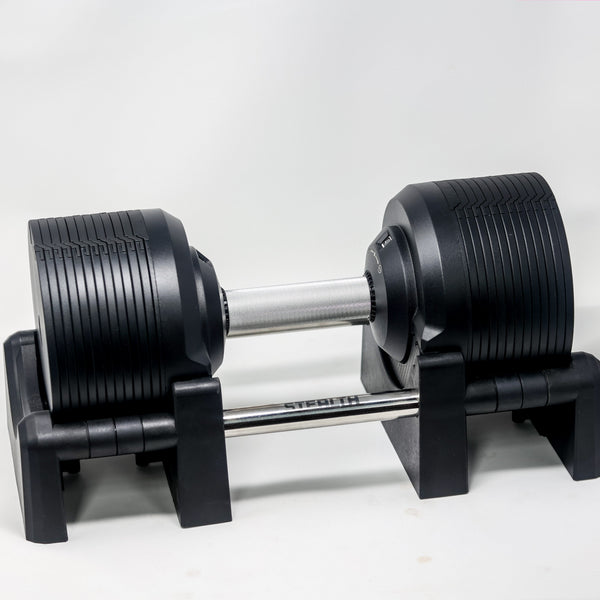

The Stealth All Out Stand V2 is only compatible with V2/G2 or newer Chrome Edition and Black Edition Stealth Adjustable Dumbbells.

It is not designed as a universal stand for every adjustable dumbbell system. If you are unsure which dumbbell version you have, check before assembly or contact us for help.

Safety Checks Before Use

Before training, always check:

1. The stand is on a flat surface
2. All four wheels are locked
3. The dumbbell bases are bolted down securely
4. The dumbbells sit properly in the bases
5. No bolts have worked loose
6. There is enough space around the stand to lift safely

Do not use the stand if any part feels unstable, misaligned or loose.

Why Use The All Out Stand Instead Of Lifting From The Floor?

A proper stand makes adjustable dumbbells much easier to use. Instead of repeatedly lifting heavy dumbbells from the floor, you can start from a better height, change weights more comfortably, and keep your training area tidier.

This is especially useful if you train with heavier dumbbells, perform multiple exercises in one session, or want a cleaner home gym setup.

The All Out Stand V2 is designed for:

1. Heavy adjustable dumbbell users
2. Home gym owners
3. Garage gym setups
4. Lifters using 32.5kg or 41.5kg dumbbells
5. Anyone who wants a more stable, premium racking setup

Common Setup Mistakes To Avoid

Tightening everything too early

Keep the bolts loose until the full frame is assembled and aligned. Tighten everything at the end.

Forgetting to lock the wheels

The wheels are there for movement, not for training unlocked. Always lock them before use.

Not checking the dumbbell base alignment

The bases need to sit correctly so the dumbbells can be lifted out and returned smoothly.

Building on an uneven floor

If the stand is built or used on an uneven surface, it may not feel as stable as intended.

Using incompatible dumbbells

The All Out Stand V2 is designed for compatible V2/G2 or newer Chrome and Black Edition Stealth Adjustable Dumbbells.

Final Setup Checklist

Before your first workout, run through this quick checklist:

1. Frame fully assembled
2. All bolts tightened
3. Wheels attached securely
4. Wheels locked
5. Dumbbell bases bolted down
6. Stand positioned on a flat surface
7. Dumbbells sitting correctly in the bases
8. Plenty of space around the stand

Once everything is checked, your Stealth All Out Stand V2 is ready to use.

Final Thoughts

The Stealth All Out Stand V2 is built for lifters who want a stronger, cleaner and more practical adjustable dumbbell setup. With its 75 × 75mm steel frame, oversized hardware, lockable wheels, adjustable base positions and bolt-on dumbbell base design, it gives your home gym a much more stable and professional feel.

Take your time with the build, keep everything loose until aligned, tighten all hardware properly, and always lock the wheels before training.

Once set up correctly, the All Out Stand V2 makes your Stealth Adjustable Dumbbells easier to access, easier to adjust and much more enjoyable to use.
